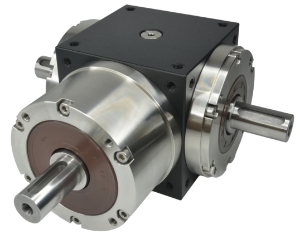

SBC-90-L-5A

•5:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Double Output Shaft • ≤6' backlash • IP64

Product specifications

Gear Ratio [i=]	5:1
Output Torque T₂max [Nm]	40
Nom Output Torque T₂n [Nm]	20
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.1°
Efficiency n1nom [ηz]	≈98%
Reflected Inertia at Input (kg•m²)	5.68 x 10-5
Mass [kg]	4.868
Max. Input Radial Load Fr1 N	1500
Max. Output Radial Load Fr2 N	1750
Max. Input Axial Load Fa1 N	750
Max. Output Axial Load Fa2 N	1000
Lubrication Oil	Klubersynth GH 6-220
Max. Operating Temp of Lub	≈95°C
Thermal Rating S1 Pthermal [kw]	2
Seals	Fluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress Protection	IP64
Noise Level Low Load	≈75dB(A)

Gear Ratio [i=]	5:1
Output Torque T₂max [Nm]	40
Nom Output Torque T₂n [Nm]	20
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.1°
Efficiency n1nom [ηz]	≈98%
Reflected Inertia at Input (kg•m²)	5.68 x 10-5
Mass [kg]	4.868
Max. Input Radial Load Fr1 N	1500
Max. Output Radial Load Fr2 N	1750
Max. Input Axial Load Fa1 N	750
Max. Output Axial Load Fa2 N	1000
Lubrication Oil	Klubersynth GH 6-220
Max. Operating Temp of Lub	≈95°C
Thermal Rating S1 Pthermal [kw]	2
Seals	Fluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress Protection	IP64
Noise Level Low Load	≈75dB(A)
