    Spiral Bevel Cube Gearbox

    Spiral Bevel Cube Gearboxes - Ground Spiral Bevel Teeth
    Spiral Bevel Gears and Pinions manufactured by Grinding optomised tooth profiles and designs into solid steel.
    Bevel gears are finish ground to give high accuracy and performances based on the Gleason GEMS and Ondrives design.
    Having optimized tooth contact pattern TCA with FEA analysis.
    The SBC (Right Angle Inline Low Ratios) Spiral Bevels right angle inline ratios 1:1 to 5:1.
    The HYSB (Small Offset Medium Ratios) Hypoid bevel gear versions have small offsets and ratios 3:1 to 15:1.
    The HRHC (High Ratio High Offset) SRH HRH Hypoid gears have large offsets and high ratios 10:1 to 60:1.
    These reducers are used in a wide varaity of industries where space saving is needed with our slim fit designs as well special designs for those applications where needed.
    Types of industries - aerospace, robotics, semiconductor, medical,  OEM's (Original Equipment Manufacturers).

    See more on our spiral bevels at :
    Ondrives Spiral Bevels Info

    View as Grid List
    Sort by
    Display per page
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

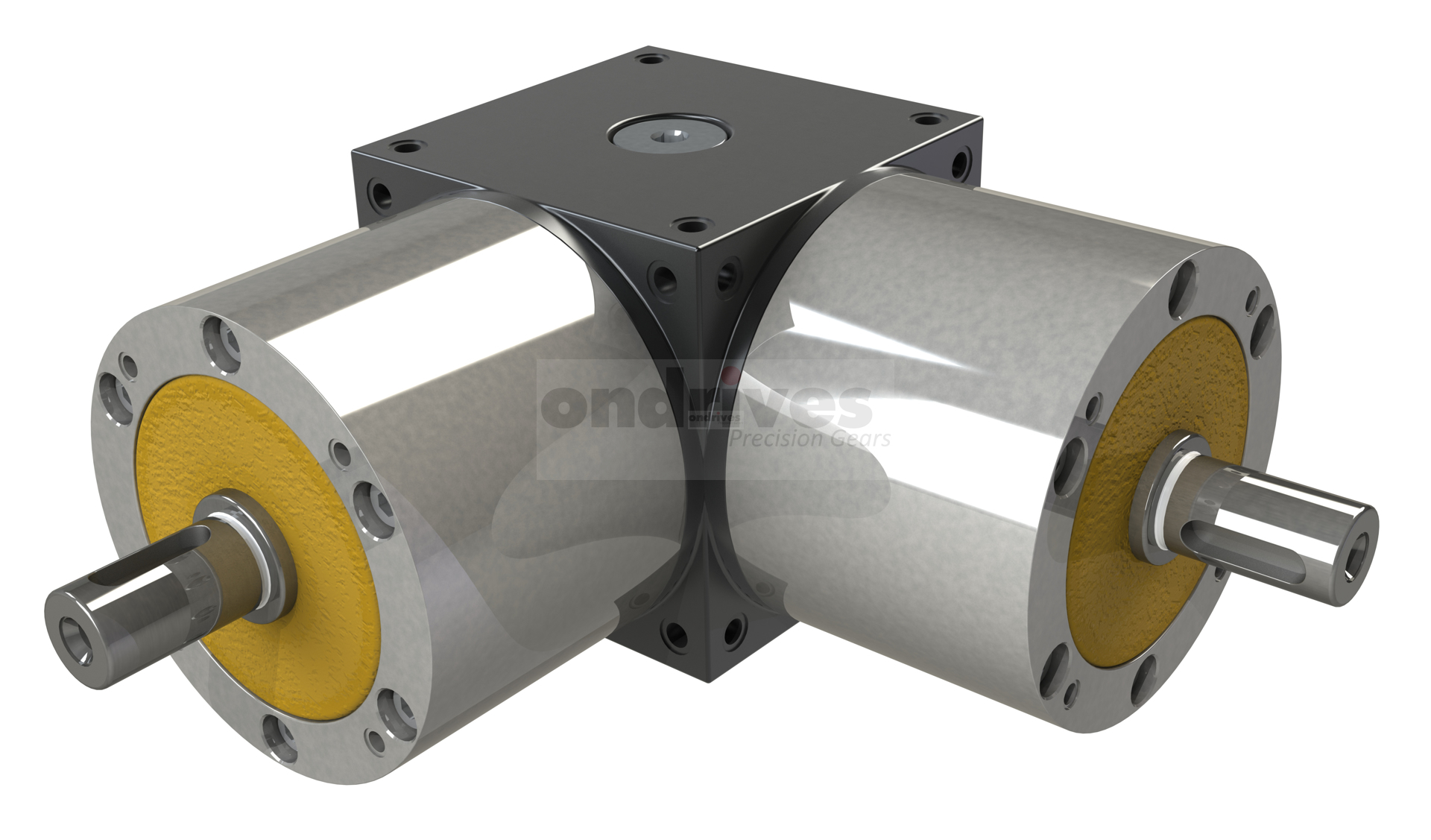

    SBC-110-K-1

    SBC-110-K-1
    £937.44
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • ≤10' backlash • IP64
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

    SBC-140-K-1

    SBC-140-K-1
    £1,100.00
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • ≤10' backlash • IP64
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

    SBC-170-K-1

    SBC-170-K-1
    £1,450.00
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft• ≤10' backlash • IP64
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

    SBC-55-K-1

    SBC-55-K-1
    £496.80
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • ≤10' backlash • IP64
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

    SBC-65-K-1

    SBC-65-K-1
    £567.00
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • ≤10' backlash • IP64
    Spiral Bevel Cube Gearbox from Ondrives UK precision gear and gearbox manufacturer

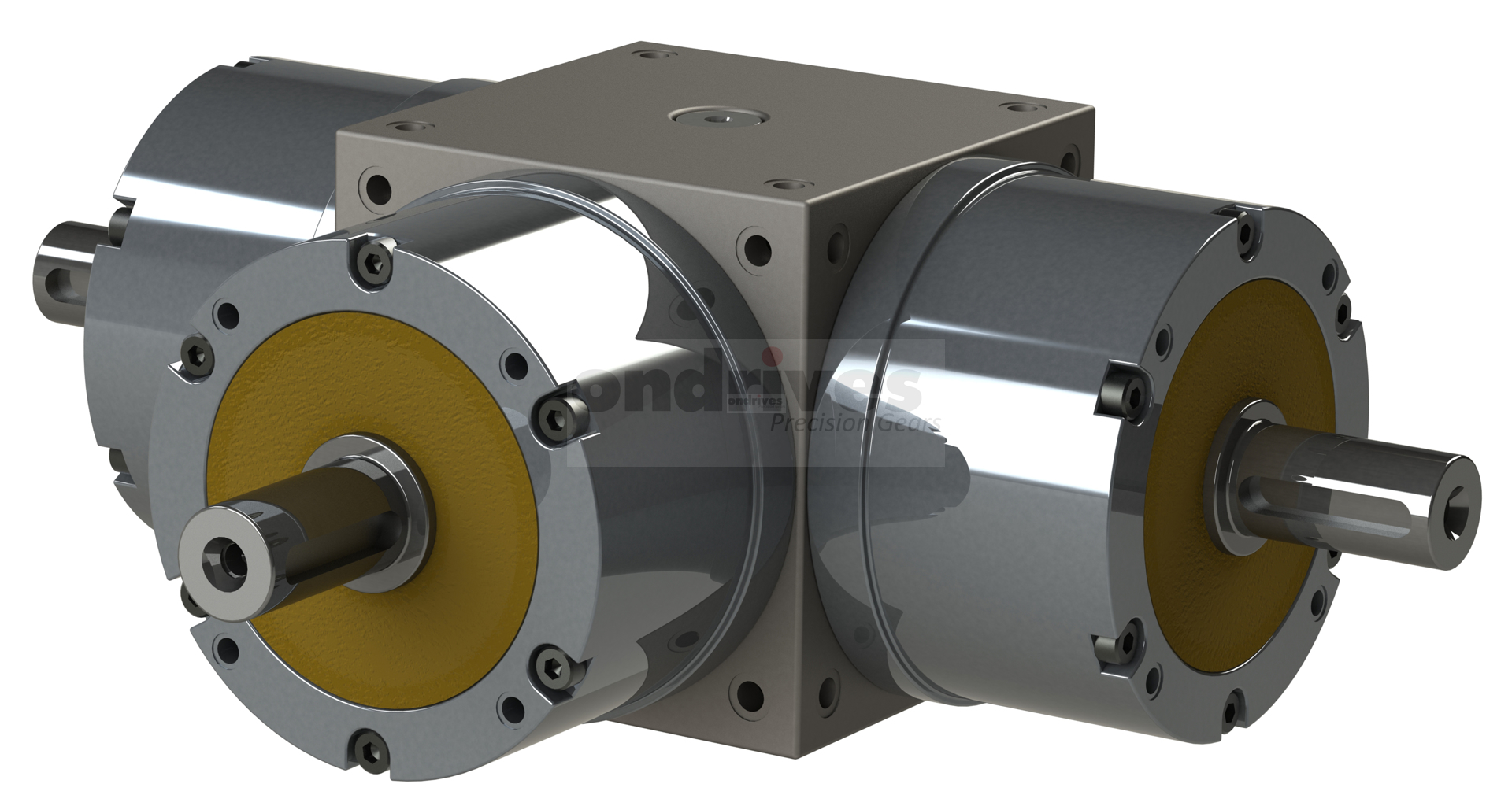

    SBC-90-CR-1

    SBC-90-CR-1
    £937.44
    •1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Double Output Shafts Counter-Rotating • ≤10' backlash • IP64

    Spiral Bevel Cube Gearbox
