KMK12

Ondrives Precision Gears and Gearboxes Part number KMK12

KMK12

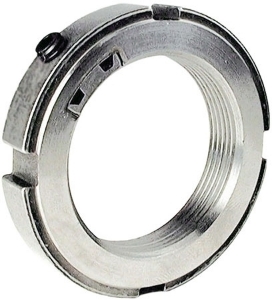

Simple Mounting Bearing Locknut, M60
Ondrives Precision Gears and Gearboxes Part number KMK12 Ondrives Precision Gears and Gearboxes Part number KMK12 Ondrives Precision Gears and Gearboxes Part number KMK12

Product specifications

Thread [M x P]M60 x 2
Diameter [D]80
Diameter [D1]74
Dimension [k] [H]15
Dimension [S]7
Dimension [T]3
Static Axial Load Carrying Capacity [kN]95
Mass [kg]0.23
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18

Product specifications

Thread [M x P]M60 x 2
Diameter [D]80
Diameter [D1]74
Dimension [k] [H]15
Dimension [S]7
Dimension [T]3
Static Axial Load Carrying Capacity [kN]95
Mass [kg]0.23
GrubscrewM8
Recommended Grubscrew Tightening Torque [Nm]18
