KMK5

Ondrives Precision Gears and Gearboxes Part number KMK5

KMK5

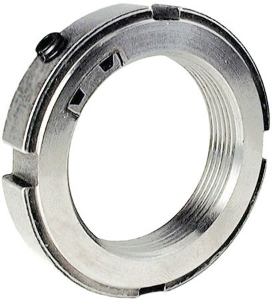

Simple Mounting Bearing Locknut, M25
Ondrives Precision Gears and Gearboxes Part number KMK5 Ondrives Precision Gears and Gearboxes Part number KMK5 Ondrives Precision Gears and Gearboxes Part number KMK5

Product specifications

Thread [M x P]M25 x 1.5
Diameter [D]38
Diameter [D1]34
Dimension [k] [H]9
Dimension [S]5
Dimension [T]2
Static Axial Load Carrying Capacity [kN]31.5
Mass [kg]0.03
GrubscrewM5
Recommended Grubscrew Tightening Torque [Nm]4

Product specifications

Thread [M x P]M25 x 1.5
Diameter [D]38
Diameter [D1]34
Dimension [k] [H]9
Dimension [S]5
Dimension [T]2
Static Axial Load Carrying Capacity [kN]31.5
Mass [kg]0.03
GrubscrewM5
Recommended Grubscrew Tightening Torque [Nm]4
