SBC-90-K-1A

SBC-90-K-1A

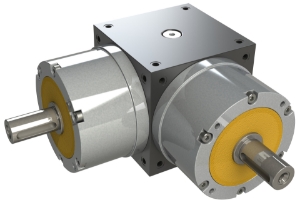

•1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • IP64

Product specifications

Gear Ratio [i=]1:1
Output Torque T₂max [Nm]100
Nom Output Torque T₂n [Nm]50
Nom. Input Speed S5 T₂n [n1nom]1500 min-1 (r/min)
Max. Input Speed [n1max]5500 min-1 (r/min)
Output Backlash j≤0.1°
Efficiency n1nom [ηz]≈98%
Reflected Inertia at Input (kg•m²)3.03 x 10-4
Mass [kg]5.3
Max. Input Radial Load Fr1 N1500
Max. Output Radial Load Fr2 N1500
Max. Input Axial Load Fa1 N750
Max. Output Axial Load Fa2 N750
Lubrication OilKlubersynth GH 6-220
Max. Operating Temp of Lub≈95°C
Thermal Rating S1 Pthermal [kw]5
SealsFluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress ProtectionIP64
Noise Level Low Load≈75dB(A)
