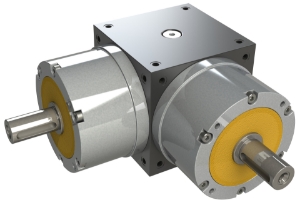

SBC-90-K-1AR

•1:1 Spiral Bevel Cube Gearbox •Single Input Shaft • Single Output Shaft • IP64

Product specifications

Gear Ratio [i=]	1:1
Output Torque T₂max [Nm]	100
Nom Output Torque T₂n [Nm]	50
Nom. Input Speed S5 T₂n [n1nom]	1500 min-1 (r/min)
Max. Input Speed [n1max]	5500 min-1 (r/min)
Output Backlash j	≤0.06°
Efficiency n1nom [ηz]	≈98%
Reflected Inertia at Input (kg•m²)	3.03 x 10-4
Mass [kg]	5.3
Max. Input Radial Load Fr1 N	1500
Max. Output Radial Load Fr2 N	1500
Max. Input Axial Load Fa1 N	750
Max. Output Axial Load Fa2 N	750
Lubrication Oil	Klubersynth GH 6-220
Max. Operating Temp of Lub	≈95°C
Thermal Rating S1 Pthermal [kw]	5
Seals	Fluoro-Elastomer FPM ISO 1629 /FKM ASTM D141 H
Ingress Protection	IP64
Noise Level Low Load	≈75dB(A)
