UPSGS3.0-32H

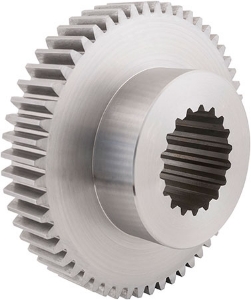

3.0 Module Case Hardened 805M20 (58-62HRC) Splined Ground Spur Gears 20° PA Quality Grade 4f24 DIN 3961/3967 (ISO 1328)

Product specifications

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN3967	4f24
Gear Tooth Type	Spur Ground
Normal Module mn	3
Pressure Angle	20°
No. of Teeth [z]	32
Spline Din 5480 Gears	N40x2.00x30x18x9H
Torque T₂ [Nm] n1 100 r/min	608.50
Ref. Diameter [d]	96
Tip Diameter [da]	102
Hub Diameter [BD]	70
Backlash (mm) jt.i (min)	0.025
Backlash (mm) jt.e (max)	0.101
Inertia [I] kgm²	2.40 x 10-3
Mass kg	2.001

Material	805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc
Quality DIN 3961 DIN3967	4f24
Gear Tooth Type	Spur Ground
Normal Module mn	3
Pressure Angle	20°
No. of Teeth [z]	32
Spline Din 5480 Gears	N40x2.00x30x18x9H
Torque T₂ [Nm] n1 100 r/min	608.50
Ref. Diameter [d]	96
Tip Diameter [da]	102
Hub Diameter [BD]	70
Backlash (mm) jt.i (min)	0.025
Backlash (mm) jt.e (max)	0.101
Inertia [I] kgm²	2.40 x 10-3
Mass kg	2.001
