FF10-3A

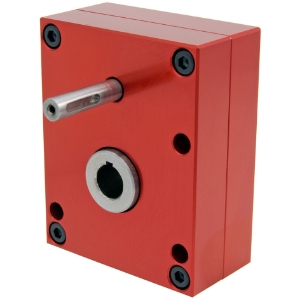

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF10-3A

Parallel gears, ≤10' backlash, 5mm shaft input, 8mm bore output, 1.29Nm-3.57Nm output torque, ratio 3:1

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

Torque	Normal
Gear Ratio [i=]	3:1
Centre Dist. [a]	21.60
Nom Output Torque T₂n [Nm]	1.49
Output Backlash j	≤0.16°
Efficiency n1 1000 r/min [ηz]	93%
Mass [kg]	0.23
Max. Input Radial Load Fr1 N	20
Max. Output Radial Load Fr2 N	100
Max. Output Axial Load Fa2 N	100
Lubrication Grease	Shell Gadus S5 V42P 2.5
