FF15-6A

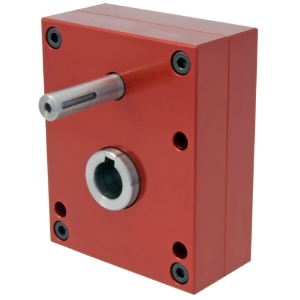

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF15-6A

Parallel gears, ≤10' backlash, 8mm shaft input, 12mm bore output, 2.6Nm-7.3Nm output torque, ratio 6:1

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

Torque	Normal
Gear Ratio [i=]	6:1
Centre Dist. [a]	30.50
Nom Output Torque T₂n [Nm]	3.1
Output Backlash j	≤0.16°
Efficiency n1 1000 r/min [ηz]	93%
Mass [kg]	0.55
Max. Input Radial Load Fr1 N	60
Max. Output Radial Load Fr2 N	200
Max. Output Axial Load Fa2 N	200
Lubrication Grease	Shell Gadus S5 V42P 2.5
