FF15-XH-7

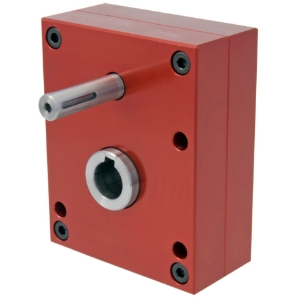

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF15-XH-7

Hardened parallel gears, ≤30' backlash, 8mm shaft input, 12mm bore output, 4.4Nm-12.2Nm output torque, ratio 7:1
Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueHigh
Gear Ratio [i=]7:1
Centre Dist. [a]30.50
Nom Output Torque T₂n [Nm]5.2
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]0.55
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

TorqueHigh
Gear Ratio [i=]7:1
Centre Dist. [a]30.50
Nom Output Torque T₂n [Nm]5.2
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]0.55
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
