FF20-XH-6

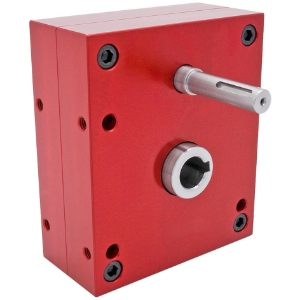

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF20-XH-6

Hardened parallel gears, ≤30' backlash, 10mm shaft input, 15mm bore output, 13.2Nm-33Nm output torque, ratio 6:1
Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueHigh
Gear Ratio [i=]6:1
Centre Dist. [a]42.40
Nom Output Torque T₂n [Nm]15.6
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]1.9
Max. Input Radial Load Fr1 N160
Max. Output Radial Load Fr2 N400
Max. Output Axial Load Fa2 N300
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

TorqueHigh
Gear Ratio [i=]6:1
Centre Dist. [a]42.40
Nom Output Torque T₂n [Nm]15.6
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]1.9
Max. Input Radial Load Fr1 N160
Max. Output Radial Load Fr2 N400
Max. Output Axial Load Fa2 N300
Lubrication GreaseShell Gadus S5 V42P 2.5
