FF40-3A

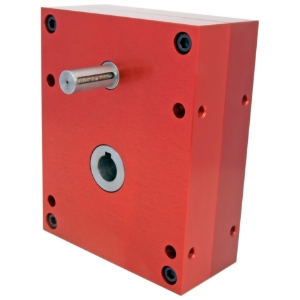

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF40-3A

Parallel gears, ≤10' backlash, 20mm shaft input, 25mm bore output, 83Nm-210Nm output torque, ratio 3:1

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

Torque	Normal
Gear Ratio [i=]	3:1
Centre Dist. [a]	88.00
Nom Output Torque T₂n [Nm]	90
Output Backlash j	≤0.16°
Efficiency n1 1000 r/min [ηz]	93%
Mass [kg]	13.493
Max. Input Radial Load Fr1 N	300
Max. Output Radial Load Fr2 N	800
Max. Output Axial Load Fa2 N	500
Lubrication Grease	Shell Gadus S5 V42P 2.5
