FF50-XH-6

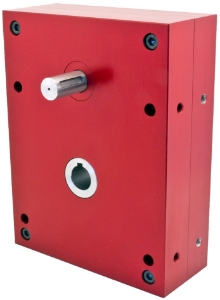

Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

FF50-XH-6

Hardened parallel gears, ≤30' backlash, 25mm shaft input, 30mm bore output, 240Nm-620Nm output torque, ratio 6:1
Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Parallel offset gear reducer shaft input, output bore compact design made by Ondrives Precision Gears and Gearboxes

Product specifications

TorqueHigh
Gear Ratio [i=]6:1
Centre Dist. [a]117.00
Nom Output Torque T₂n [Nm]260
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]26.59
Max. Input Radial Load Fr1 N400
Max. Output Radial Load Fr2 N1000
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

TorqueHigh
Gear Ratio [i=]6:1
Centre Dist. [a]117.00
Nom Output Torque T₂n [Nm]260
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]93%
Mass [kg]26.59
Max. Input Radial Load Fr1 N400
Max. Output Radial Load Fr2 N1000
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S5 V42P 2.5
