S681

Ondrives Precision Gears and Gearboxes Part number S681

S681

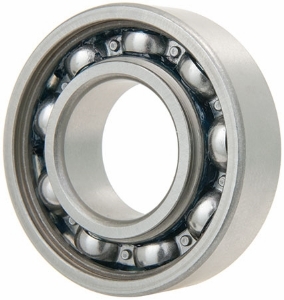

Stainless Steel Miniature Ball Bearing. Open Type. 1mm Bore
Ondrives Precision Gears and Gearboxes Part number S681 Ondrives Precision Gears and Gearboxes Part number S681

Product specifications

Bore Diameter [d]1
Diameter [A]3
Dimension [B]1
Dimension [r] Min.0.05
Static Load Rating [N]19.61
Dynamic Load Rating [N]58.84
Max. Speed [rpm]150000

Product specifications

Bore Diameter [d]1
Diameter [A]3
Dimension [B]1
Dimension [r] Min.0.05
Static Load Rating [N]19.61
Dynamic Load Rating [N]58.84
Max. Speed [rpm]150000
