6006

Ondrives Precision Gears and Gearboxes Part number 6006

6006

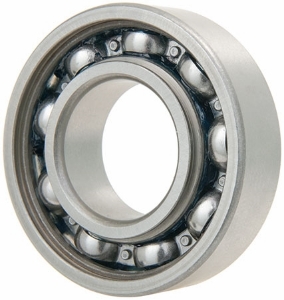

Steel Single Row Deep Groove Ball Bearing. Open Type. 30mm Bore
Ondrives Precision Gears and Gearboxes Part number 6006 Ondrives Precision Gears and Gearboxes Part number 6006

Product specifications

Bore Diameter [d]30
Diameter [A]55
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]13200
Static Load Rating [N]8300
Max. Speed [rpm]15000
Mass [kg]0.116

Product specifications

Bore Diameter [d]30
Diameter [A]55
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]13200
Static Load Rating [N]8300
Max. Speed [rpm]15000
Mass [kg]0.116
