6015

Ondrives Precision Gears and Gearboxes Part number 6015

6015

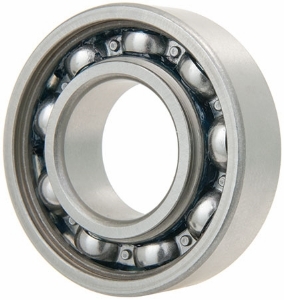

Steel Single Row Deep Groove Ball Bearing. Open Type. 75mm Bore
Ondrives Precision Gears and Gearboxes Part number 6015 Ondrives Precision Gears and Gearboxes Part number 6015

Product specifications

Bore Diameter [d]75
Diameter [A]115
Dimension [B]20
Dimension [r] Min.1.1
Dynamic Load Rating [N]39500
Static Load Rating [N]33500
Max. Speed [rpm]6700
Mass [kg]0.649

Product specifications

Bore Diameter [d]75
Diameter [A]115
Dimension [B]20
Dimension [r] Min.1.1
Dynamic Load Rating [N]39500
Static Load Rating [N]33500
Max. Speed [rpm]6700
Mass [kg]0.649
