6017

Ondrives Precision Gears and Gearboxes Part number 6017

6017

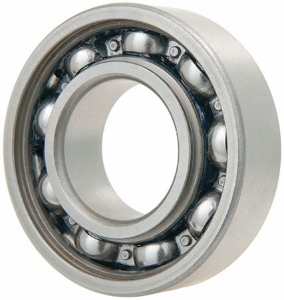

Steel Single Row Deep Groove Ball Bearing. Open Type. 85mm Bore
Ondrives Precision Gears and Gearboxes Part number 6017 Ondrives Precision Gears and Gearboxes Part number 6017

Product specifications

Bore Diameter [d]85
Diameter [A]130
Dimension [B]22
Dimension [r] Min.1.1
Dynamic Load Rating [N]49500
Static Load Rating [N]43000
Max. Speed [rpm]5900
Mass [kg]0.918

Product specifications

Bore Diameter [d]85
Diameter [A]130
Dimension [B]22
Dimension [r] Min.1.1
Dynamic Load Rating [N]49500
Static Load Rating [N]43000
Max. Speed [rpm]5900
Mass [kg]0.918
