6220

Ondrives Precision Gears and Gearboxes Part number 6220

6220

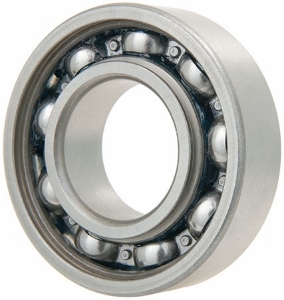

Steel Single Row Deep Groove Ball Bearing. Open Type. 100mm Bore
Ondrives Precision Gears and Gearboxes Part number 6220 Ondrives Precision Gears and Gearboxes Part number 6220

Product specifications

Bore Diameter [d]100
Diameter [A]180
Dimension [B]34
Dimension [r] Min.2.1
Dynamic Load Rating [N]122000
Static Load Rating [N]93000
Max. Speed [rpm]4200
Mass [kg]3.14

Product specifications

Bore Diameter [d]100
Diameter [A]180
Dimension [B]34
Dimension [r] Min.2.1
Dynamic Load Rating [N]122000
Static Load Rating [N]93000
Max. Speed [rpm]4200
Mass [kg]3.14
