6306
6306

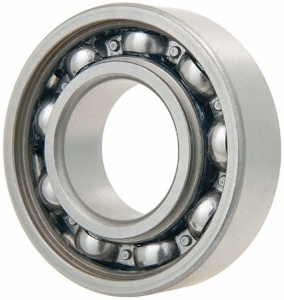

Steel Single Row Deep Groove Ball Bearing. Open Type. 30mm Bore
Product specifications
Bore Diameter [d]
30
Diameter [A]
72
Dimension [B]
19
Dimension [r] Min.
1.1
Dynamic Load Rating [N]
26700
Static Load Rating [N]
15000
Max. Speed [rpm]
12000
Mass [kg]
0.36
Specifications
Overview
Product specifications
Bore Diameter [d]
30
Diameter [A]
72
Dimension [B]
19
Dimension [r] Min.
1.1
Dynamic Load Rating [N]
26700
Static Load Rating [N]
15000
Max. Speed [rpm]
12000
Mass [kg]
0.36
Information
Quality Certificate - AS9100D (EN9100:2018, JISQ9100:2016, KS Q 9100:2018), ISO9001:2015
