6309

Ondrives Precision Gears and Gearboxes Part number 6309

6309

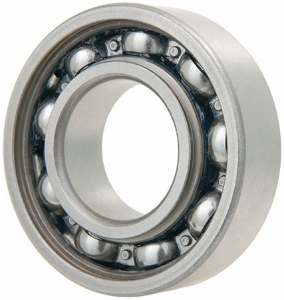

Steel Single Row Deep Groove Ball Bearing. Open Type. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6309 Ondrives Precision Gears and Gearboxes Part number 6309

Product specifications

Bore Diameter [d]45
Diameter [A]100
Dimension [B]25
Dimension [r] Min.1.5
Dynamic Load Rating [N]53000
Static Load Rating [N]32000
Max. Speed [rpm]8200
Mass [kg]0.814

Product specifications

Bore Diameter [d]45
Diameter [A]100
Dimension [B]25
Dimension [r] Min.1.5
Dynamic Load Rating [N]53000
Static Load Rating [N]32000
Max. Speed [rpm]8200
Mass [kg]0.814
