6311

Ondrives Precision Gears and Gearboxes Part number 6311

6311

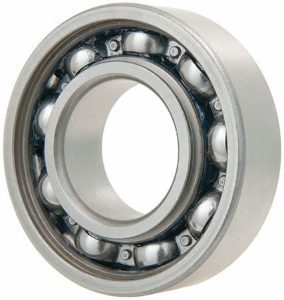

Steel Single Row Deep Groove Ball Bearing. Open Type. 55mm Bore
Ondrives Precision Gears and Gearboxes Part number 6311 Ondrives Precision Gears and Gearboxes Part number 6311

Product specifications

Bore Diameter [d]55
Diameter [A]120
Dimension [B]29
Dimension [r] Min.2
Dynamic Load Rating [N]71500
Static Load Rating [N]45000
Max. Speed [rpm]6800
Mass [kg]1.37

Product specifications

Bore Diameter [d]55
Diameter [A]120
Dimension [B]29
Dimension [r] Min.2
Dynamic Load Rating [N]71500
Static Load Rating [N]45000
Max. Speed [rpm]6800
Mass [kg]1.37
