6312

Ondrives Precision Gears and Gearboxes Part number 6312

6312

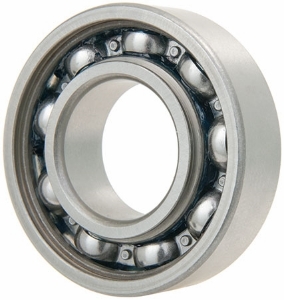

Steel Single Row Deep Groove Ball Bearing. Open Type. 60mm Bore
Ondrives Precision Gears and Gearboxes Part number 6312 Ondrives Precision Gears and Gearboxes Part number 6312

Product specifications

Bore Diameter [d]60
Diameter [A]130
Dimension [B]31
Dimension [r] Min.2.1
Dynamic Load Rating [N]82000
Static Load Rating [N]52000
Max. Speed [rpm]6300
Mass [kg]1.72

Product specifications

Bore Diameter [d]60
Diameter [A]130
Dimension [B]31
Dimension [r] Min.2.1
Dynamic Load Rating [N]82000
Static Load Rating [N]52000
Max. Speed [rpm]6300
Mass [kg]1.72
