6316

Ondrives Precision Gears and Gearboxes Part number 6316

6316

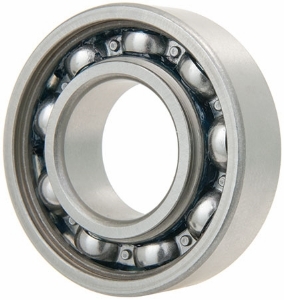

Steel Single Row Deep Groove Ball Bearing. Open Type. 80mm Bore
Ondrives Precision Gears and Gearboxes Part number 6316 Ondrives Precision Gears and Gearboxes Part number 6316

Product specifications

Bore Diameter [d]80
Diameter [A]170
Dimension [B]39
Dimension [r] Min.2.1
Dynamic Load Rating [N]123000
Static Load Rating [N]86500
Max. Speed [rpm]4700
Mass [kg]3.67

Product specifications

Bore Diameter [d]80
Diameter [A]170
Dimension [B]39
Dimension [r] Min.2.1
Dynamic Load Rating [N]123000
Static Load Rating [N]86500
Max. Speed [rpm]4700
Mass [kg]3.67
