6905

Ondrives Precision Gears and Gearboxes Part number 6905

6905

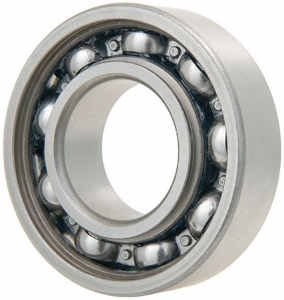

Steel Single Row Deep Groove Ball Bearing. Open Type. 25mm Bore
Ondrives Precision Gears and Gearboxes Part number 6905 Ondrives Precision Gears and Gearboxes Part number 6905

Product specifications

Bore Diameter [d]25
Diameter [A]42
Dimension [B]9
Dimension [r] Min.0.3
Dynamic Load Rating [N]7050
Static Load Rating [N]4550
Max. Speed [rpm]19000
Mass [kg]0.042

Product specifications

Bore Diameter [d]25
Diameter [A]42
Dimension [B]9
Dimension [r] Min.0.3
Dynamic Load Rating [N]7050
Static Load Rating [N]4550
Max. Speed [rpm]19000
Mass [kg]0.042
