6909

Ondrives Precision Gears and Gearboxes Part number 6909

6909

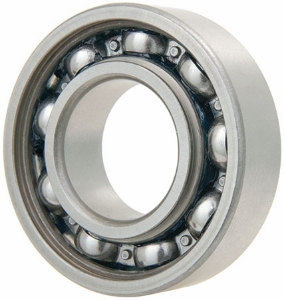

Steel Single Row Deep Groove Ball Bearing. Open Type. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6909 Ondrives Precision Gears and Gearboxes Part number 6909

Product specifications

Bore Diameter [d]45
Diameter [A]68
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]13100
Static Load Rating [N]10400
Max. Speed [rpm]12000
Mass [kg]0.128

Product specifications

Bore Diameter [d]45
Diameter [A]68
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]13100
Static Load Rating [N]10400
Max. Speed [rpm]12000
Mass [kg]0.128
