6918

Ondrives Precision Gears and Gearboxes Part number 6918

6918

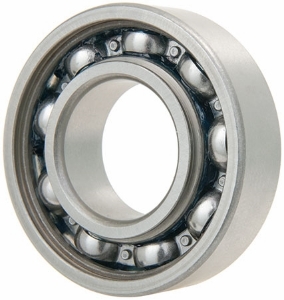

Steel Single Row Deep Groove Ball Bearing. Open Type. 90mm Bore
Ondrives Precision Gears and Gearboxes Part number 6918 Ondrives Precision Gears and Gearboxes Part number 6918

Product specifications

Bore Diameter [d]90
Diameter [A]125
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]33000
Static Load Rating [N]31500
Max. Speed [rpm]6000
Mass [kg]0.554

Product specifications

Bore Diameter [d]90
Diameter [A]125
Dimension [B]18
Dimension [r] Min.1.1
Dynamic Load Rating [N]33000
Static Load Rating [N]31500
Max. Speed [rpm]6000
Mass [kg]0.554
