6009-2RS

Ondrives Precision Gears and Gearboxes Part number 6009-2RS

6009-2RS

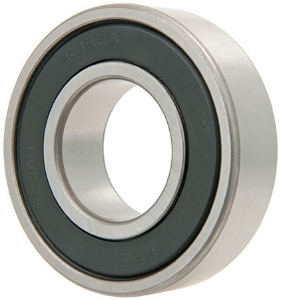

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6009-2RS Ondrives Precision Gears and Gearboxes Part number 6009-2RS

Product specifications

Diameter [d]45
Diameter [A]75
Dimension [B]16
Dimension [r] Min.1
Dynamic Load Rating [N]21000
Static Load Rating [N]15100
Max. Speed [rpm]5400
Mass [kg]0.237

Product specifications

Diameter [d]45
Diameter [A]75
Dimension [B]16
Dimension [r] Min.1
Dynamic Load Rating [N]21000
Static Load Rating [N]15100
Max. Speed [rpm]5400
Mass [kg]0.237
