6304-2RS

Ondrives Precision Gears and Gearboxes Part number 6304-2RS

6304-2RS

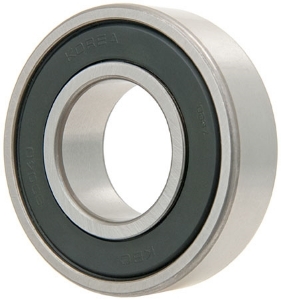

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 20mm Bore
Ondrives Precision Gears and Gearboxes Part number 6304-2RS Ondrives Precision Gears and Gearboxes Part number 6304-2RS

Product specifications

Diameter [d]20
Diameter [A]52
Dimension [B]15
Dimension [r] Min.1.1
Dynamic Load Rating [N]15900
Static Load Rating [N]7900
Max. Speed [rpm]10000
Mass [kg]0.144

Product specifications

Diameter [d]20
Diameter [A]52
Dimension [B]15
Dimension [r] Min.1.1
Dynamic Load Rating [N]15900
Static Load Rating [N]7900
Max. Speed [rpm]10000
Mass [kg]0.144
