6309-2RS

Ondrives Precision Gears and Gearboxes Part number 6309-2RS

6309-2RS

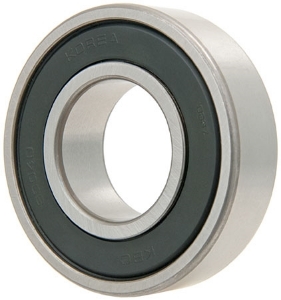

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6309-2RS Ondrives Precision Gears and Gearboxes Part number 6309-2RS

Product specifications

Diameter [d]45
Diameter [A]100
Dimension [B]25
Dimension [r] Min.1.5
Dynamic Load Rating [N]53000
Static Load Rating [N]32000
Max. Speed [rpm]4700
Mass [kg]0.814

Product specifications

Diameter [d]45
Diameter [A]100
Dimension [B]25
Dimension [r] Min.1.5
Dynamic Load Rating [N]53000
Static Load Rating [N]32000
Max. Speed [rpm]4700
Mass [kg]0.814
