6315-2RS

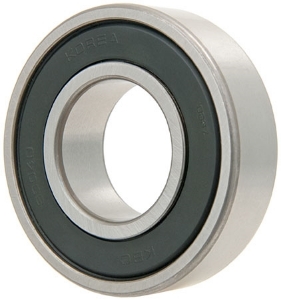

Ondrives Precision Gears and Gearboxes Part number 6315-2RS

6315-2RS

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 75mm Bore
Ondrives Precision Gears and Gearboxes Part number 6315-2RS Ondrives Precision Gears and Gearboxes Part number 6315-2RS

Product specifications

Diameter [d]75
Diameter [A]160
Dimension [B]37
Dimension [r] Min.2.1
Dynamic Load Rating [N]113000
Static Load Rating [N]77000
Max. Speed [rpm]2900
Mass [kg]3.08

Product specifications

Diameter [d]75
Diameter [A]160
Dimension [B]37
Dimension [r] Min.2.1
Dynamic Load Rating [N]113000
Static Load Rating [N]77000
Max. Speed [rpm]2900
Mass [kg]3.08
