6318-2RS

Ondrives Precision Gears and Gearboxes Part number 6318-2RS

6318-2RS

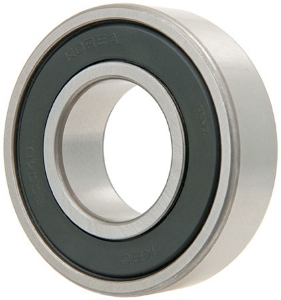

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 90mm Bore
Ondrives Precision Gears and Gearboxes Part number 6318-2RS Ondrives Precision Gears and Gearboxes Part number 6318-2RS

Product specifications

Diameter [d]90
Diameter [A]190
Dimension [B]43
Dimension [r] Min.3
Dynamic Load Rating [N]143000
Static Load Rating [N]107000
Max. Speed [rpm]2400
Mass [kg]4.91

Product specifications

Diameter [d]90
Diameter [A]190
Dimension [B]43
Dimension [r] Min.3
Dynamic Load Rating [N]143000
Static Load Rating [N]107000
Max. Speed [rpm]2400
Mass [kg]4.91
