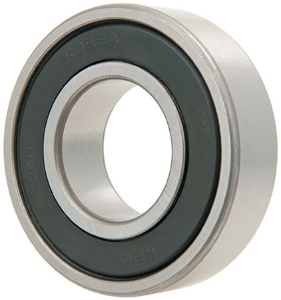

6802-2RS

Ondrives Precision Gears and Gearboxes Part number 6802-2RS

6802-2RS

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 15mm Bore
Ondrives Precision Gears and Gearboxes Part number 6802-2RS Ondrives Precision Gears and Gearboxes Part number 6802-2RS

Product specifications

Diameter [d]15
Diameter [A]24
Dimension [B]5
Dimension [r] Min.0.3
Dynamic Load Rating [N]2080
Static Load Rating [N]1260
Max. Speed [rpm]17000
Mass [kg]0.007

Product specifications

Diameter [d]15
Diameter [A]24
Dimension [B]5
Dimension [r] Min.0.3
Dynamic Load Rating [N]2080
Static Load Rating [N]1260
Max. Speed [rpm]17000
Mass [kg]0.007
