6804-2RS

Ondrives Precision Gears and Gearboxes Part number 6804-2RS

6804-2RS

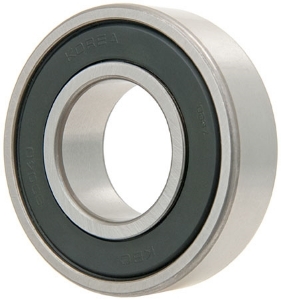

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 20mm Bore
Ondrives Precision Gears and Gearboxes Part number 6804-2RS Ondrives Precision Gears and Gearboxes Part number 6804-2RS

Product specifications

Diameter [d]20
Diameter [A]32
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]4000
Static Load Rating [N]2470
Max. Speed [rpm]13000
Mass [kg]0.019

Product specifications

Diameter [d]20
Diameter [A]32
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]4000
Static Load Rating [N]2470
Max. Speed [rpm]13000
Mass [kg]0.019
