6809-2RS

Ondrives Precision Gears and Gearboxes Part number 6809-2RS

6809-2RS

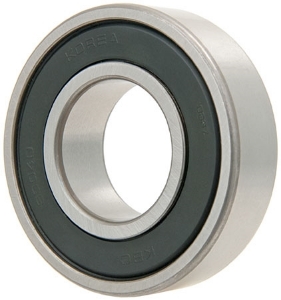

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6809-2RS Ondrives Precision Gears and Gearboxes Part number 6809-2RS

Product specifications

Diameter [d]45
Diameter [A]58
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]5350
Static Load Rating [N]4950
Max. Speed [rpm]5900
Mass [kg]0.04

Product specifications

Diameter [d]45
Diameter [A]58
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]5350
Static Load Rating [N]4950
Max. Speed [rpm]5900
Mass [kg]0.04
