6815-2RS

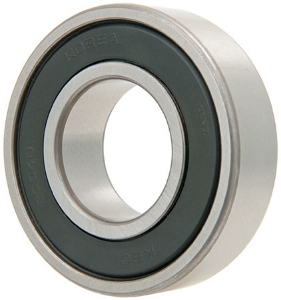

Ondrives Precision Gears and Gearboxes Part number 6815-2RS

6815-2RS

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 75mm Bore
Ondrives Precision Gears and Gearboxes Part number 6815-2RS Ondrives Precision Gears and Gearboxes Part number 6815-2RS

Product specifications

Diameter [d]75
Diameter [A]95
Dimension [B]10
Dimension [r] Min.0.6
Dynamic Load Rating [N]12500
Static Load Rating [N]12900
Max. Speed [rpm]3600
Mass [kg]0.145

Product specifications

Diameter [d]75
Diameter [A]95
Dimension [B]10
Dimension [r] Min.0.6
Dynamic Load Rating [N]12500
Static Load Rating [N]12900
Max. Speed [rpm]3600
Mass [kg]0.145
