6816-2RS

Ondrives Precision Gears and Gearboxes Part number 6816-2RS

6816-2RS

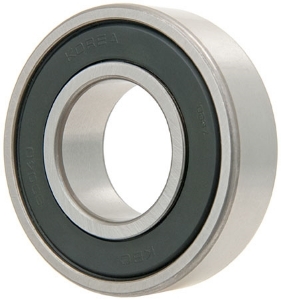

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 80mm Bore
Ondrives Precision Gears and Gearboxes Part number 6816-2RS Ondrives Precision Gears and Gearboxes Part number 6816-2RS

Product specifications

Diameter [d]80
Diameter [A]100
Dimension [B]10
Dimension [r] Min.0.6
Dynamic Load Rating [N]12700
Static Load Rating [N]13300
Max. Speed [rpm]3400
Mass [kg]0.151

Product specifications

Diameter [d]80
Diameter [A]100
Dimension [B]10
Dimension [r] Min.0.6
Dynamic Load Rating [N]12700
Static Load Rating [N]13300
Max. Speed [rpm]3400
Mass [kg]0.151
