6820-2RS

Ondrives Precision Gears and Gearboxes Part number 6820-2RS

6820-2RS

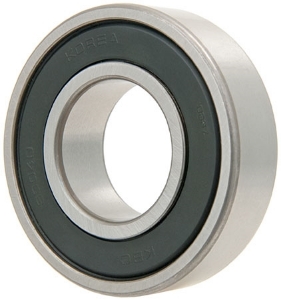

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 100mm Bore
Ondrives Precision Gears and Gearboxes Part number 6820-2RS Ondrives Precision Gears and Gearboxes Part number 6820-2RS

Product specifications

Diameter [d]100
Diameter [A]125
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]19600
Static Load Rating [N]21200
Max. Speed [rpm]2700
Mass [kg]0.313

Product specifications

Diameter [d]100
Diameter [A]125
Dimension [B]13
Dimension [r] Min.1
Dynamic Load Rating [N]19600
Static Load Rating [N]21200
Max. Speed [rpm]2700
Mass [kg]0.313
