6903-2RS

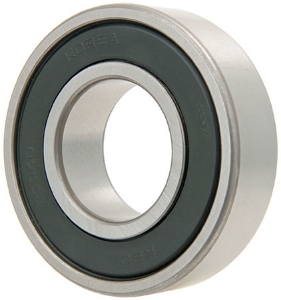

Ondrives Precision Gears and Gearboxes Part number 6903-2RS

6903-2RS

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 17mm Bore
Ondrives Precision Gears and Gearboxes Part number 6903-2RS Ondrives Precision Gears and Gearboxes Part number 6903-2RS

Product specifications

Diameter [d]17
Diameter [A]30
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]4650
Static Load Rating [N]2580
Max. Speed [rpm]14000
Mass [kg]0.018

Product specifications

Diameter [d]17
Diameter [A]30
Dimension [B]7
Dimension [r] Min.0.3
Dynamic Load Rating [N]4650
Static Load Rating [N]2580
Max. Speed [rpm]14000
Mass [kg]0.018
