6909-2RS

Ondrives Precision Gears and Gearboxes Part number 6909-2RS

6909-2RS

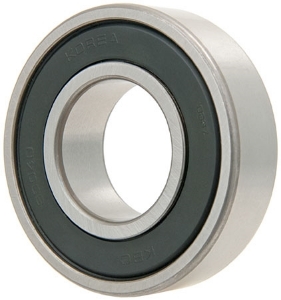

Steel Single Row Deep Groove Ball Bearing. Contact Sealed Type 2RS. 45mm Bore
Ondrives Precision Gears and Gearboxes Part number 6909-2RS Ondrives Precision Gears and Gearboxes Part number 6909-2RS

Product specifications

Diameter [d]45
Diameter [A]68
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]13100
Static Load Rating [N]10400
Max. Speed [rpm]5600
Mass [kg]0.128

Product specifications

Diameter [d]45
Diameter [A]68
Dimension [B]12
Dimension [r] Min.0.6
Dynamic Load Rating [N]13100
Static Load Rating [N]10400
Max. Speed [rpm]5600
Mass [kg]0.128
