686

Ondrives Precision Gears and Gearboxes Part number 686

686

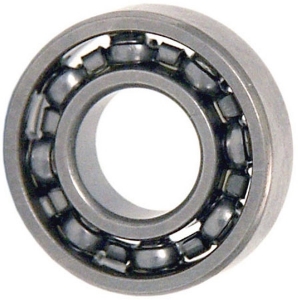

Steel Miniature Ball Bearing. Open Type. 6mm Bore
Ondrives Precision Gears and Gearboxes Part number 686 Ondrives Precision Gears and Gearboxes Part number 686

Product specifications

Bore Diameter [d]6
Diameter [A]13
Dimension [B]3.5
Dimension [r] Min.0.15
Static Load Rating [N]402
Dynamic Load Rating [N]1000
Max. Speed [rpm]45000

Product specifications

Bore Diameter [d]6
Diameter [A]13
Dimension [B]3.5
Dimension [r] Min.0.15
Static Load Rating [N]402
Dynamic Load Rating [N]1000
Max. Speed [rpm]45000
