S6801ZZW7

Ondrives Precision Gears and Gearboxes Part number S6801ZZW7

S6801ZZW7

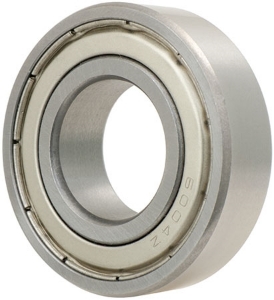

Stainless Steel Thin Section Ball Bearing. Metal Shielded Type ZZ. 12mm Bore
Ondrives Precision Gears and Gearboxes Part number S6801ZZW7 Ondrives Precision Gears and Gearboxes Part number S6801ZZW7

Product specifications

Bore Diameter [d]12
Diameter [A]21
Dimension [B]7
Dimension [r] Min.0.3
Static Load Rating [N]853.18
Dynamic Load Rating [N]1569.06
Max. Speed [rpm]32000

Product specifications

Bore Diameter [d]12
Diameter [A]21
Dimension [B]7
Dimension [r] Min.0.3
Static Load Rating [N]853.18
Dynamic Load Rating [N]1569.06
Max. Speed [rpm]32000
