PP35-400

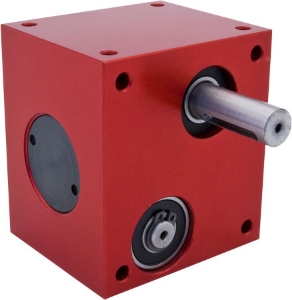

Ondrives Precision Gears and Gearboxes Part number PP35-400

PP35-400

Double reduction worm gear reducer, 8mm input shaft, 10mm output shaft, 5Nm output torque, Ratio 400:1
Ondrives Precision Gears and Gearboxes Part number PP35-400 Ondrives Precision Gears and Gearboxes Part number PP35-400 Ondrives Precision Gears and Gearboxes Part number PP35-400 Ondrives Precision Gears and Gearboxes Part number PP35-400

Product specifications

Gear Ratio [i=]400:1
Output Torque T₂max [Nm]5
Nom Output Torque T₂n [Nm]3.4
Output Backlash j≤0.92°
Efficiency n1 1000 r/min [ηz]34%
Mass [kg]0.7
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N120
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]400:1
Output Torque T₂max [Nm]5
Nom Output Torque T₂n [Nm]3.4
Output Backlash j≤0.92°
Efficiency n1 1000 r/min [ηz]34%
Mass [kg]0.7
Max. Input Radial Load Fr1 N60
Max. Output Radial Load Fr2 N120
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S5 V42P 2.5
