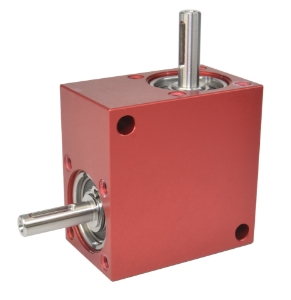

BLH20-2A

Spiral Bevel Gearbox Right Angle Shaft Input 1 Shaft Output, ≤30' backlash, 5mm shafts, 0.53Nm-1.41Nm output torque, ratio 2:1

Product specifications

Gear Ratio [i=]	2:1
Output Backlash j	≤0.5°
Output Torque T₂n [Nm]	0.70
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	8.41 x 10-8
Mass [kg]	0.12
Max. Input Radial Load Fr1 N	10
Max. Output Radial Load Fr2 N	10
Max. Output Axial Load Fa2 N	5
Lubrication Grease	Shell Gadus S2 V220AD 2

Gear Ratio [i=]	2:1
Output Backlash j	≤0.5°
Output Torque T₂n [Nm]	0.70
Efficiency n1 1000 r/min [ηz]	88%
Reflected Inertia at Input (kg•m²)	8.41 x 10-8
Mass [kg]	0.12
Max. Input Radial Load Fr1 N	10
Max. Output Radial Load Fr2 N	10
Max. Output Axial Load Fa2 N	5
Lubrication Grease	Shell Gadus S2 V220AD 2
