  4. E20-LH 3.9Nm 20mm-Centres

E20-5-LH

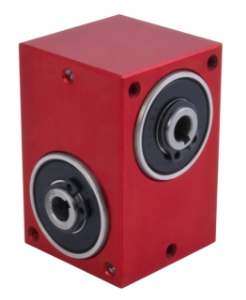

Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

E20-5-LH

Right angle crossed axis helical gearbox reducer, ≤45' backlash, 6mm bores, 0.6Nm-2.00Nm output torque, ratio 5:1
Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]5:1
Centre Dist. [a]20.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]2
Output Torque T₂n [Nm]1.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]80%
Reflected Inertia at Input (kg•m²)1.544 x 10-6
Mass [kg]0.256
Max. Output Radial Load Fr2 N150
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]5:1
Centre Dist. [a]20.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]2
Output Torque T₂n [Nm]1.00
Output Backlash j≤0.75°
Efficiency n1 1000 r/min [ηz]80%
Reflected Inertia at Input (kg•m²)1.544 x 10-6
Mass [kg]0.256
Max. Output Radial Load Fr2 N150
Max. Output Axial Load Fa2 N100
Lubrication GreaseShell Gadus S2 V220AD 2
