  4. E30-LH 9Nm 30mm-Centres

E30-1AR-LH

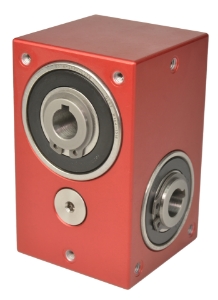

Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

E30-1AR-LH

Right angle crossed axis helical gearbox reducer, ≤10' backlash, 10mm bores, 1.5Nm-5.0Nm output torque, ratio 1:1
Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]1:1
Centre Dist. [a]30.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]5
Output Torque T₂n [Nm]2.50
Bore Diameter mm Ø H710
Output Backlash j≤0.16°
Efficiency n1 1000 r/min [ηz]90%
Reflected Inertia at Input (kg•m²)2.867 x 10-5
Mass [kg]0.72
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N150
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]1:1
Centre Dist. [a]30.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]5
Output Torque T₂n [Nm]2.50
Bore Diameter mm Ø H710
Output Backlash j≤0.16°
Efficiency n1 1000 r/min [ηz]90%
Reflected Inertia at Input (kg•m²)2.867 x 10-5
Mass [kg]0.72
Max. Output Radial Load Fr2 N200
Max. Output Axial Load Fa2 N150
Lubrication GreaseShell Gadus S2 V220AD 2
