E70-LH 66Nm 70mm-Centres
E70-1AR-LH
E70-1AR-LH

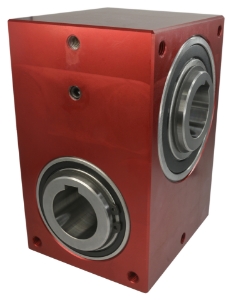

Right angle crossed axis helical gearbox reducer, ≤10' backlash, 40mm bores, 3.82Nm-65.86Nm output torque, ratio 1:1
Product specifications
Gear Ratio [i=]
1:1
Centre Dist. [a]
70.00
Helix Direction
Left Hand
Output Torque T₂max [Nm]
66
Output Torque T₂n [Nm]
10.33
Output Backlash j
≤0.16°
Efficiency
77%
Reflected Inertia at Input (kg•m²)
3.066 x 10-3
Mass [kg]
9.718
Max. Output Radial Load Fr2 N
1100
Max. Output Axial Load Fa2 N
600
Lubrication Grease
Shell Gadus S2 V220AD 2
Specifications
Product PDF
Technical
CAD
Overview
Product specifications
Gear Ratio [i=]
1:1
Centre Dist. [a]
70.00
Helix Direction
Left Hand
Output Torque T₂max [Nm]
66
Output Torque T₂n [Nm]
10.33
Output Backlash j
≤0.16°
Efficiency
77%
Reflected Inertia at Input (kg•m²)
3.066 x 10-3
Mass [kg]
9.718
Max. Output Radial Load Fr2 N
1100
Max. Output Axial Load Fa2 N
600
Lubrication Grease
Shell Gadus S2 V220AD 2
