E70-2A-LH

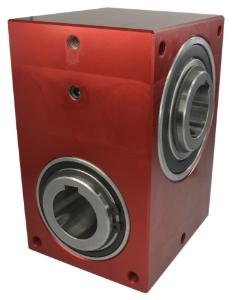

Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes

E70-2A-LH

Right angle crossed axis helical gearbox reducer, ≤30' backlash, 40mm bores, 3.53Nm-49.63Nm output torque, ratio 2:1
Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Low Backlash Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Right angle crossed axis helical gearbox reducer bore input and output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for Right angle crossed axis helical gearbox reducer made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]2:1
Centre Dist. [a]70.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]66
Output Torque T₂n [Nm]10.62
Output Backlash j≤0.5°
Efficiency73%
Reflected Inertia at Input (kg•m²)1.974 x 10-3
Mass [kg]9.718
Max. Output Radial Load Fr2 N1100
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S2 V220AD 2

Product specifications

Gear Ratio [i=]2:1
Centre Dist. [a]70.00
Helix DirectionLeft Hand
Output Torque T₂max [Nm]66
Output Torque T₂n [Nm]10.62
Output Backlash j≤0.5°
Efficiency73%
Reflected Inertia at Input (kg•m²)1.974 x 10-3
Mass [kg]9.718
Max. Output Radial Load Fr2 N1100
Max. Output Axial Load Fa2 N600
Lubrication GreaseShell Gadus S2 V220AD 2
