EHD08-9

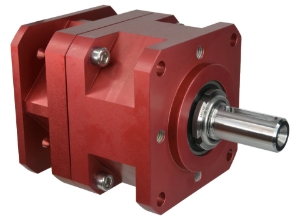

Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes

EHD08-9

Double stage inline epicyclic servo reducer, 9mm input bore, 15mm output shaft, 35Nm-50Nm output torque, ratio 9:1
Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]9:1
Nom Output Torque T₂n [Nm]43
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]86%
Output Rotation DirectionSame as Input
Mass [kg]2.1
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]9:1
Nom Output Torque T₂n [Nm]43
Output Backlash j≤0.5°
Efficiency n1 1000 r/min [ηz]86%
Output Rotation DirectionSame as Input
Mass [kg]2.1
Max. Output Radial Load Fr2 N300
Max. Output Axial Load Fa2 N200
Lubrication GreaseShell Gadus S5 V42P 2.5
