  4. EHD16 380Nm-3:1-6:1 Ø32-Output-Shaft

EHD16-3

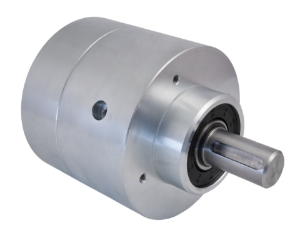

Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes

EHD16-3

Inline epicyclic servo reducer, 19mm input bore, 32mm output shaft, 250Nm-380Nm output torque, ratio 3:1
Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Drawing of Servo Gearbox bore input, shaft output compact design made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes Torque Vrs Speed Graph for servo gearbox made by Ondrives Precision Gears and Gearboxes

Product specifications

Gear Ratio [i=]3:1
Nom Output Torque T₂n [Nm]300
Output Backlash j≤0.25°
Efficiency n1 1000 r/min [ηz]92%
Output Rotation DirectionSame as Input
Mass [kg]18.856
Max. Output Radial Load Fr2 N1000
Max. Output Axial Load Fa2 N1000
Lubrication GreaseShell Gadus S5 V42P 2.5

Product specifications

Gear Ratio [i=]3:1
Nom Output Torque T₂n [Nm]300
Output Backlash j≤0.25°
Efficiency n1 1000 r/min [ηz]92%
Output Rotation DirectionSame as Input
Mass [kg]18.856
Max. Output Radial Load Fr2 N1000
Max. Output Axial Load Fa2 N1000
Lubrication GreaseShell Gadus S5 V42P 2.5
