HRHC28-20

HRHC28-20

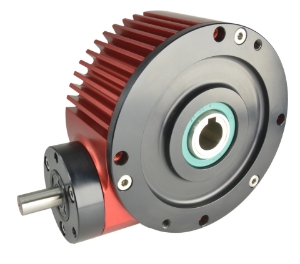

Precision high ratio hypoid gearbox, <15' backlash, shaft input, 12mm output bore & 10mm input shaft, 20Nm output torque, 28mm offset centres, ratio 15:1

Product specifications

Centre Dist. [a] 28.00
Gear Ratio [i=] 20:1
Output Torque T₂max [Nm] 40
Output Torque T₂n [Nm] 20.00
Output Backlash j ≤0.25°
Efficiency n1 1000 r/min [ηz] 90%
Mass [kg] 1.32
Max. Input Radial Load Fr1 N 200
Max. Input Axial Load Fa1 N 100
Max. Output Radial Load Fr2 N 600
Max. Output Axial Load Fa2 N 400
Lubrication Oil Klubersynth GH 6-220
